Fire safety is a critical consideration in building design and construction, particularly for walls and partitions. Today, the market offers a wide range of building materials with fire-resistant and high-temperature performance. However, not every product complies with the latest fire safety requirements under QCVN 06:2021/BXD, as Vinh Tuong solutions do. Read the article below to learn more.

What Is a Fire-Rated Partition?

A fire-rated partition is an important construction solution designed to contain and slow the spread of fire in the event of a fire. This type of partition is constructed from materials with high heat resistance, such as fire-resistant panels, specialized gypsum boards, or composite materials with superior thermal insulation properties.

Thanks to their effective protective performance, fire-rated partitions are widely used in factories, offices, shopping centers, and industrial facilities to improve overall fire prevention and firefighting safety.

Saint-Gobain Fire Safety Solutions Compliant with QCVN 06:2021/BXD

Saint-Gobain is one of the world’s leading building materials groups, offering a diverse portfolio of construction solutions. To provide maximum support for partners, project owners, and contractors during project inspection and acceptance in accordance with QCVN 06:2021/BXD, Saint-Gobain has shortened the time required to update and supplement compliance certifications for its fire compartmentation solutions.

In particular, Vinh Tuong fire-rated gypsum partition systems meet fire resistance requirements of up to EI 60, EI 120, and EI 150. These systems are highly suitable for partitions in residential buildings, offices, hotels, commercial developments, and many other types of projects.

In addition, fire-rated gypsum partitions can meet the specific requirements of factories and industrial buildings, with partition heights ranging from 8 to 15 m.

>> How Much Does a Gypsum Partition Cost per Square Meter? 2024 Installation Price Guide

Benefits of Vinh Tuong Fire-Rated Gypsum Partitions

1. Fire Resistance from 30 to 150 Minutes

The system helps protect occupants and property while complying with Vietnam’s fire safety regulation QCVN 06:2021/BXD.

These gypsum partition solutions have been tested by reputable independent domestic and international laboratories, including BTC in the United Kingdom, TÜV SÜD Singapore, and IBST Vietnam, in accordance with BS EN 1363 and BS EN 1364 standards.

2. Fast and Flexible Installation

The systems are quick to install and easy to repair or maintain, helping projects reach completion sooner and enabling a faster return on investment.

3. Flat, Crack-Free Wall Surfaces

The systems are manufactured in accordance with Saint-Gobain’s stringent quality and quality-management standards, using materials sourced from leading suppliers. As a result, the finished partitions offer consistent quality, long service life, and high aesthetic performance, with smooth, flat, and crack-free surfaces.

Vinh Tuong Fire-Rated Gypsum Partition Pricing

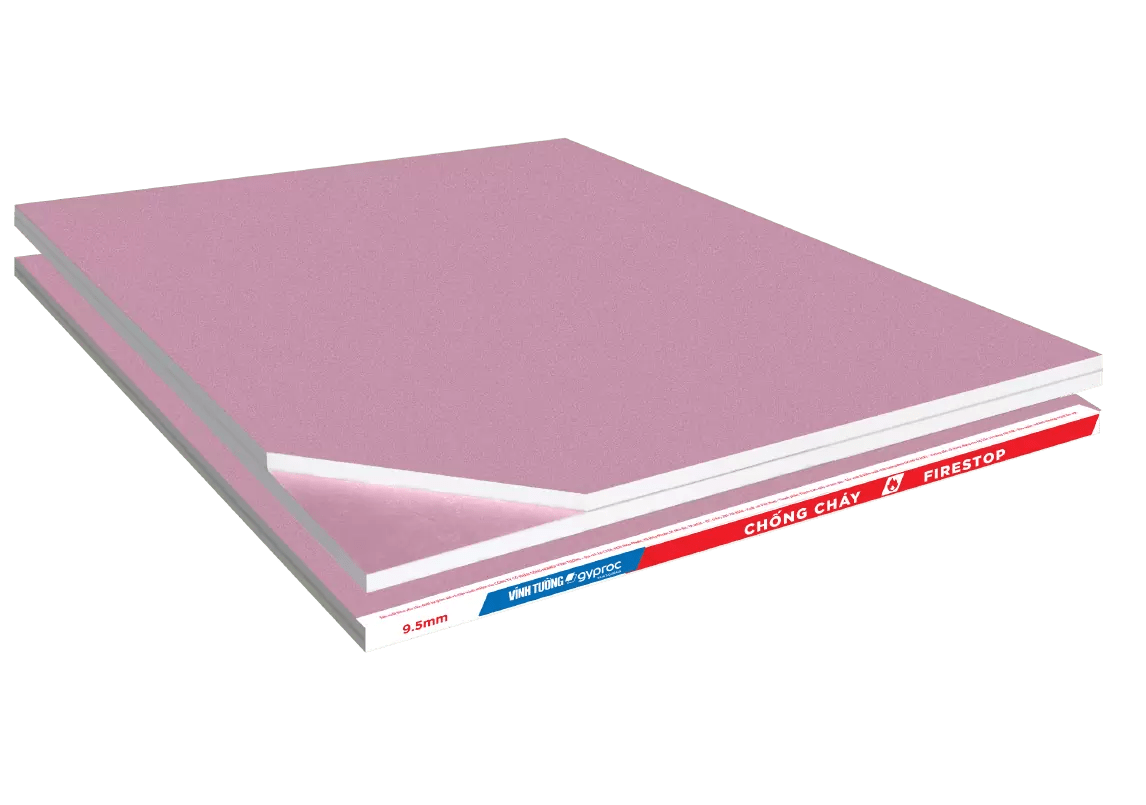

Vinh Tuong-gyproc Fire-Resistant Gypsum Boards in 12.5 mm and 15 mm thicknesses feature a core formulated from gypsum, glass fiber, micro-silica additives, and vermiculite minerals, enhancing the fire resistance of the complete partition system.

30-Minute Fire-Rated Gypsum Wall

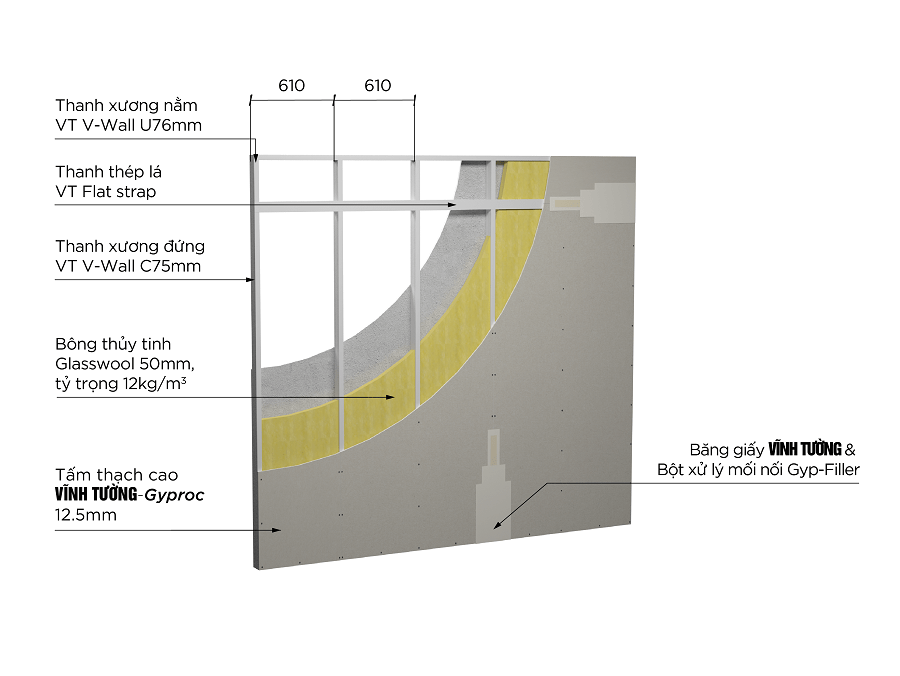

GypWall DW1 Gypsum Wall System Description

• Vinh Tuong V-Wall® or Vinh Tuong E-Wall® partition framing system.
• One layer of 12.5 mm Vinh Tuong-gyproc Standard Gypsum Board on each side.
• Glasswool insulation, 50 mm thick, with a density of 12 kg/m³.
• Stud spacing, center-to-center: 610 mm.
• Total wall thickness: 101 mm.

System Feature

• Sound insulation: Rw = 42 dB.
• EI fire resistance rating: 30 minutes.
• Duty rating: Medium.
• Maximum wall height: 3,600 mm.

60-Minute Fire-Rated Gypsum Wall

System Description

• Vinh Tuong V-Wall partition framing system.
• Board lining: One layer of DURAflex 2X high-durability cement board on each side.
• Glasswool insulation, 50 mm thick, with a density of 24 kg/m³.
• Stud spacing, center-to-center: 610 mm.
• Total wall thickness: 126 mm.
• Maximum wall height: 4,600 mm.

System Feature

• Sound insulation: Rw = 50 dB.
• EI fire resistance rating: 60 minutes.
• Duty rating: Severe.

>> Top 4 Cost-Effective and High-Performance Fire-Resistant Insulation Boards Available Today

120-Minute Fire-Rated Gypsum Wall

System Description

• Vinh Tuong V-Wall partition framing system.
• Board lining on each side: One inner layer of 12.5 mm Vinh Tuong-gyproc Standard Gypsum Board and one outer layer of 15 mm Vinh Tuong-gyproc Fire-Resistant Gypsum Board.
• Glasswool insulation, 50 mm thick, with a density of 48 kg/m³.
• Stud spacing, center-to-center: 610 mm.
• Total wall thickness: 131 mm.
• Maximum wall height: 4,600 mm.

System Feature

• Sound insulation: Rw = 53 dB.
• EI fire resistance rating: 120 minutes.
• Duty rating: Severe.

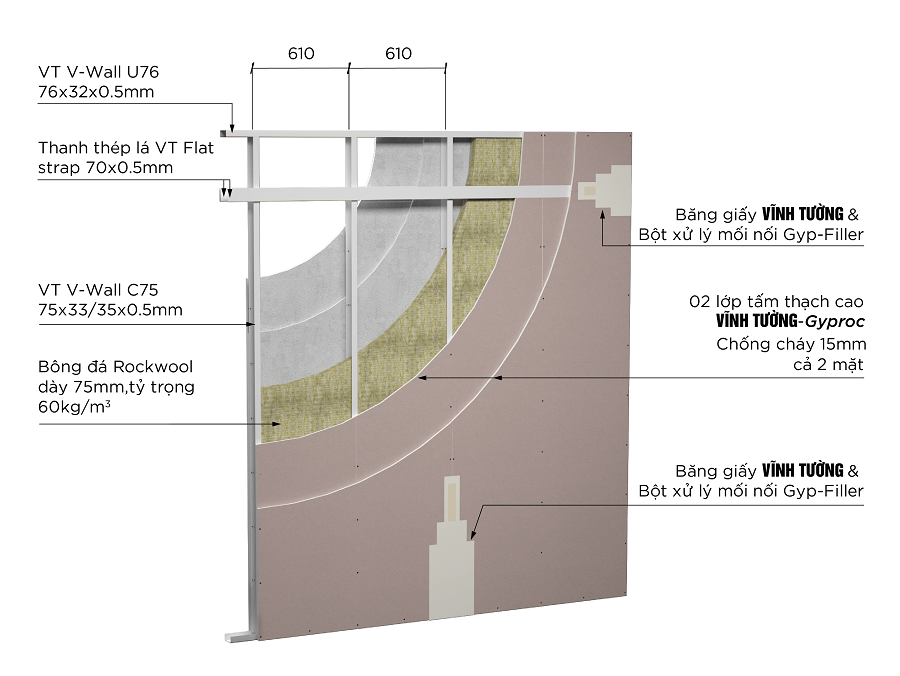

150-Minute Fire-Rated Gypsum Wall

System Description

• Vinh Tuong V-Wall® partition framing system.
• Board lining: Two layers of 15 mm Vinh Tuong-gyproc Fire-Resistant Gypsum Board on each side.
• Rockwool insulation, 75 mm thick, with a density of 60 kg/m³.
• Stud spacing, center-to-center: 610 mm.
• Total wall thickness: 136 mm.
• Maximum wall height: 4,600 mm.

System Feature

• EI fire resistance rating: 150 minutes.
• Duty rating: Severe.

We hope this article helps you select a suitable fire-rated gypsum wall and partition system for your home.
